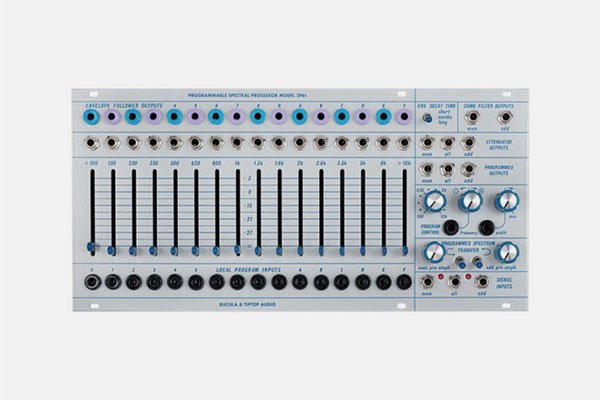

Buchla Model 296t by Tiptop Audio

Features

• Programmable Spectral Processor
• Voltage controllable 16-band filter bank for filtering and vocoding applications
• 16 frequency bands with level fader (range: +6 dB to full attenuation)
• For each band: CV input, audio output and envelope follower output
• Three signal inputs for even, odd or all frequency bands
• Gain controls and feedback switches for the groups of even and odd bands
• Three selectable decay times for the envelope followers
• Output section with control knob for manual band-selection and CV inputs with attenuator for frequency and bandwidth
• Audio outputs for even, odd or all frequency bands
• Comb filter outputs for even and odd frequency bands
• Size: 52HP
• Depth: 52mm
• Power : 360 mA +12 V, 350 mA -12 V
