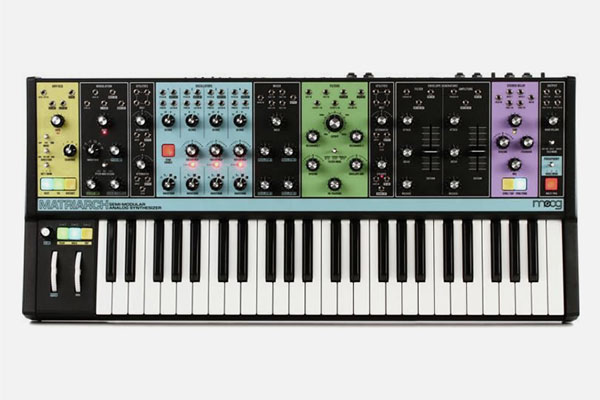

Matriarch by Moog
Matriarch is an analog synthesizer with an emphasis on imagination. The pinnacle of Moog’s semi-modular family of synthesizers, Matriarch’s patchable architecture and vintage Moog circuits reward open exploration with endless sonic possibilities and unparalleled analog sound.
Easily create rich harmonic shapes with up to 4 notes of paraphony that can be sequenced, saved, and shifted with Matriarch’s intuitive 256 step sequencer, or stack the analog VCOs to play on a massive 4 oscillator mono synth.
With a deep assortment of synthesis modules based on Bob Moog’s original circuit designs, Matriarch’s 100% analog signal path spans a dynamic sonic vocabulary from overdriven monophonic bass to gently evolving paraphonic plucks that cycle through waveshapes into a wash of infinite delay trails.
Coupling the power of vintage stereo ladder filters, dual Envelope Generators, stereo Analog Delays, and stereo VCAs, Matriarch delivers a multidimensional sound that empowers the sonic exploration of space and time.
Though Matriarch’s semi-modular design requires absolutely no patching, 90 modular patch points are easily accessible throughout the panel via the included 3.5mm patch cables. This powerful electronic instrument is a highly-versatile addition to any stage or studio that can effortlessly transform from a performance keyboard to a fully modular analog synthesizer at a moment’s notice.
Features
- 4x Analog Oscillators with Selectable Waveforms (Oscillators 2, 3, and 4 support Hard Sync), White Noise Generator, External Input jack
- Mixer 6 input (5 eurorack level and 1 instrument level) DC coupled discrete mixer with asymmetrical clipping behavior
- Filter 24dB/Octave Low Pass Filter with Resonance, 24dB/Octave switchable Low Pass/High Pass Filter with Resonance. Configurable in parallel (HP/LP), stereo (LP/LP), and series (HP/LP)
- Analog Modulation Oscillator with selectable and patchable output (Sine, Saw, Ramp, Square, Stepped Triangle, Smoothed Random, Sample and Hold, Noise). Additional LFO (Tri, Square)
- 2x Four-Stage ADSR with End of Envelope gate outputs
- 3x Bipolar Voltage Controlled Attenuators with Ring Mod capabilities
- 2x4 Parallel-wired Non-buffered Patch Points
- 2x discrete analog VCAs routed in stereo
- Stereo Analog Delay with Ping/Pong, MIDI and CV clock sync, voltage controlled Mix, and independent L/R delay times, feedback, and I/O
- Arpeggiator/Step Sequencer 256 Steps with up to 4 notes per step; 12 Sequence locations
- Audio Input 1/4” TS jack (Rear Panel)
- Audio Output 2x 1/4” TS jacks for line level output (Rear Panel), 1/4” Headphone jack with dedicated level knob (rear panel), 2x 3.5mm Eurorack level outputs, 2x 3.5mm Delay outputs
- MIDI I/O 5-pin DIN In, Out, Thru; plus MIDI over USB (Rear Panel)
