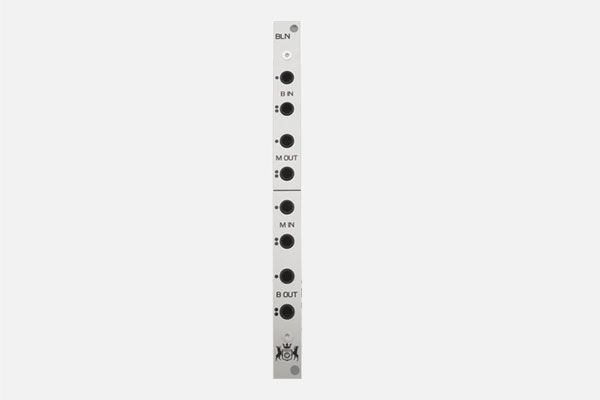

BLN by Michigan Synth Works

Name: Michigan Synth Works BLN
Brand: Michigan Synth Works
SKU: MICBLN
Price: 85.00 EUR
Availability: OutOfStock

85,00€

Out of Stock

The item is out of stock. Leave your email to to be contacted once the item will be in stock again.

BLN is a 4 channel audio level converter designed to interface line or "pro" audio levels to modular audio levels. It features 2 independent converters with 2 channels each.

Converter 1: Line level/Balanced to Modular Level

The inputs for the top converter are for converting -10dB or +4dB signal levels (mono balanced or unbalanced) to +/-5V modular levels. Each channel can be set individually for +4 or -10 using channel 1 and 2 of the DIP switched

Converter 2: Modular level to Balanced Lined

The inputs for the bottom to converters accept a +/-5V modular audio level and converts them to a MONO BALANCED +4 dB or -10 dB audio level. Each channel can be set individually for +4 or -10 using channel 3 and 4 of the DIP switched.

Features

Size: 2HP
Depth: 32mm
Power: 12/14 mA +12/-12
