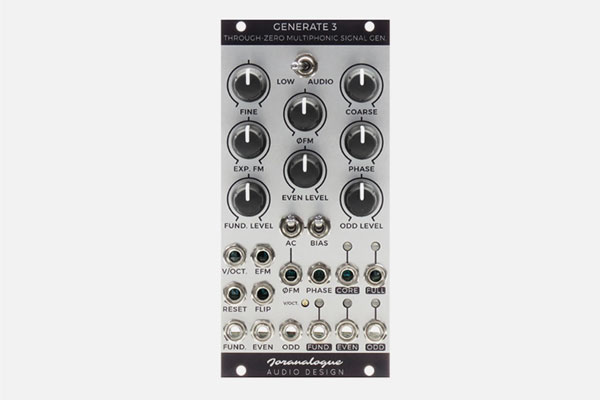

Generate 3 by Joranalogue

Features

• High-stability precision analogue triangle-core VC(LF)O with fine and coarse tuning.
• Waveform outputs: core (triangle), fundamental (sine), even (saw), odd and full (mix of timbral channels).
• 1 volt/octave pitch tracking over the full audio range.
• Exponential frequency modulation with polariser knob.
• Through-zero linear frequency modulation with symmetry/modulation polariser knob, and AC-coupling and bias switches.
• Through-zero phase modulation with 900° of shift range.
• Through-zero amplitude modulation of three timbral channels: fundamental, even and odd harmonics.
• Two simultaneous oscillator synchronisation types: reset (hard sync) and flip (soft sync).
• LF mode for LFO use. Ultra-wide total frequency range: 2.8 mHz (6 minutes) to 27 kHz, a range of nearly 10,000,000:1!
• Impedance-compensated outputs with dual-colour LEDs.
• Trim potentiometer accessible from the front panel.
• Size: 12HP
• Depth: 30mm
• Power: +12: 130 mA, −12: 115 mA
