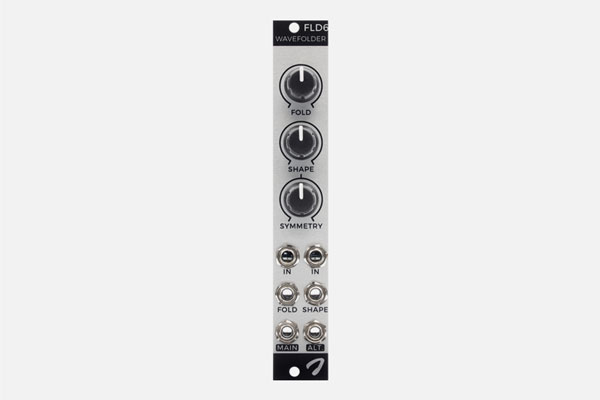

Fold 6 by Joranalogue
Price match guarantee. If you find a cheaper price, we'll match it. Write us
Often considered to be the opposite of filters within a modular system, wavefolders are designed to fold a signal over itself multiple times. This generates additional harmonics, resulting in rich timbres.
While there is a bewildering array of filter types within the synthesiser world, most wavefolders fall within only a few categories. Diode wavefolders in particular come in just two variants: series and parallel circuit topologies. Choosing a specific folder also means being limited to specific sounds and capabilities.
For the first time, Fold 6 puts forward a 6-stage hybrid series/parallel topology, yielding a greater sonic palette than ever in just 4 HP. Having both main (series) and alternate (parallel) outputs means a single module now gives access to just about all wavefolding tones imaginable.
Features
- Size: 4HP
- Depth: 35mm
- Power: +12: 40 mA, −12: 40 mA
