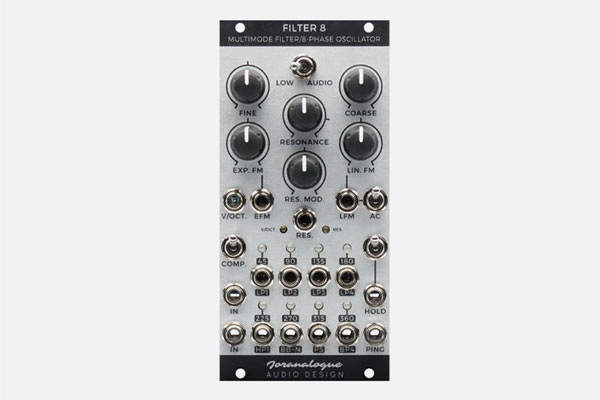

Filter 8 by Joranalogue

295,00€
In Store
This item is available at our store. Ready for shipment.

Price match guarantee. If you find a cheaper price, we'll match it. Write us

Representing the cutting edge in modular analogue voltage controlled filter (VCF) design, Filter 8 offers more possibilities and higher fidelity in 12 HP than ever before.

Starting from the classic OTA-style 4-pole cascaded lowpass (LP) topology, Filter 8 features separate LP outputs, each with their own character. Additional filter responses are achieved by pole mixing: 1-pole highpass, a special band boost and notch response, phase shifter and 4-pole bandpass. All outputs are available simultaneously.

While rooted in the legacy of classic synthesisers, Filter 8 provides a new approach to musical signal generators and modifiers: instead of simply a VCF, VCO, slew modifier or VCLFO, a single analogue module can now be any of those, and anything in between.

Features

  • Analogue 'OTA style' cascaded 4-pole lowpass VCF with self-oscillation capability.
  • Filter outputs: 1-through-4 pole lowpass, 1-pole highpass, band boost+notch, phase shifter, 4-pole bandpass.
  • Self oscillation: 8-phase sine waves, separated by 45°.
  • Accurate temperature-stable sine wave VC(LF)O with fine and coarse tuning.
  • Simultaneous exponential and linear FM, including depth polarisers, dedicated 1 volt/octave input and LFM AC-coupling switch.
  • Unique voltage controlled resonance topology: all outputs resonate with absolutely no loss of low frequency response, unlike common 'bass compensation' methods.
  • Resonance compensation gain switch: adjusts output gains for equal amplitude self-oscillation (10 Vpp).
  • LF mode for slew modifier or LFO use. Ultra-wide total frequency range: 2.8 mHz (6 minutes) to 27 kHz, a range of nearly 10,000,000:1
  • Dual signal inputs increase patching flexibility.
  • Impedance-compensated outputs with dual-colour LEDs.
  • Voltage hold feature 'freezes' the filter core. Pause LFO modulations, or create pulse-width-sensitive sync sounds at audio rates. Also useful as clickless output mute. Manual or gate control.
  • Dedicated ping trigger input: 'strike' the filter core using any trigger or gate signal and easily create percussive sounds with 8 different timbres.
  • Trim potentiometers accessible from the front panel.
  • Size: 12HP
  • Depth: 30mm
  • Power: +12: 75 mA, −12: 75 mA
