Furthrrrr Generator by Endorphin.es
Price match guarantee. If you find a cheaper price, we'll match it. Write us

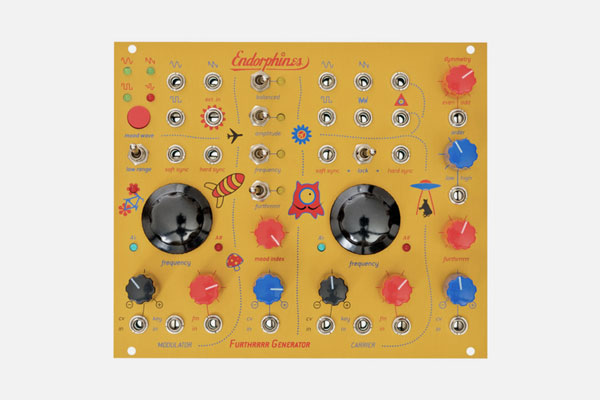

The Furthrrrr Generator has a main oscillator (carrier) with an extensive and fully voltage controllable wave mulitplier and a modulation oscillator (modulator) that can crossmodulate the carrier.
Each oscillator has hard and soft sync and also featrues an integrated tuner: if both LEDs are lit the VCO is at note A. Left LED is lit at note Ab and right LED at A#. Frequency potentiometers are ten-turn models and thus allow for eeazy tuning. Frequency range of the VCOs is 10Hz-10kHz (and much lower in modulator´s LFO mode).
Both VCOs feature 2 frequency CV inputs (1x with bipolar attenuator, 1x with 1V/octave), one FM input (jumper selectable between linear and exponantial FM) as well as separate input for hard and soft sync. The voltage characteristic can be selected between 1V/octave and 1.2V/octave (Buchla norm).
Features
- All analog signal path inspired by & based upon famous westcoast synthesis – a module in the tradition of harmonic generation based on additive synthesis
- 2 discrete OTA triangle-core VCOs both with hard- (resetable) and soft- (inverting) syncs. The cores are self made custom encapsulated circuits with decent results of tracking (up to 6 octaves) as well as fine temperature stability
- Multi-turn frequency knobs sweep up to 10 octaves
- Simple and efficient oscillator tuners
- Selectable tracking (1 or 1.2 v/oct) by setting a jumper (we believe at last a few wigglers will appreciate that)
- Size: 30HP
- Power: 200 mA +12V, 200 mA -12V
