Easel Command by Buchla

€3,280.00
In Store
This item is available at our store. Ready for shipment.

Price match guarantee. If you find a cheaper price, we'll match it. Write us

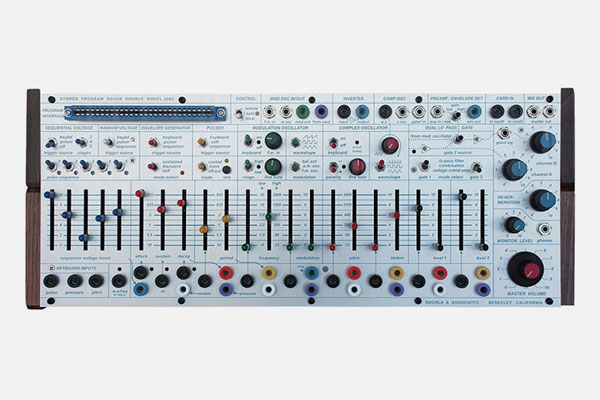

The evolution of the legendary modular analog synthesizer by Don Buchla. The Buchla Easel Command is the newly updated 208C in a standalone desktop form with MIDI and CV control.

Features

  • MIDI input(USB B/DIN)
  • 2 x 1/4" Audio outputs
  • 1 x 1/8" 1v/oct input (mixed to keyboard input)
  • 1 x 1/8" Gate input (turned into Buchla keyboard pulse with sustain)
  • MIDI A (USB Host) optional expansion port.
  • Five additional audio connections to get independent inputs and outputs from the oscillators and the gates, plus an FM input to the modulation oscillator.
  • Five additional banana CV connections to control knobs and faders and ability to send pulses independently to different inputs.
  • If no aux input is present, analog white noise is generated (using the 266 circuit).
  • A more logical layout of of the top row.
  • A power/control mode LED indicator.
  • Pulser now has a dedicated single pulse switch and mode distinction
  • The modulation oscillator section is now green, so that each main section has its own color.
  • The listed oscillator frequencies are more accurate and the scaled fader input range is trimmable from the old range to 1.2v/oct.
  • You can trim the new modulation oscillator and envelope generator inputs to work with the typical input ranges you desire.
  • You can trim the oscillators to your desired volts per octave range for both the keyboard and the fader inputs.
  • You can also reduce the gain on the gate 1 input if you have an unusually hot, non-Buchla input.
  • One single circuit board allows it to be modular case friendly and easier to service
  • Switches and jumpers for those who want to use the new banana inputs —those for the modulation oscillator and sustain— to control the sequencer stages instead.
  • Standard headers for the program card connector that allow us to develop future iProgramCard-like preset control from inside the unit.
  • New connectors allow our plug-in MIDI interface and provides an optional stereo digital fx option (coming as an optional add-on in the future)
  • Actual stereo. The 208 was always a mono synth, but if you plug in a stereo digital fx (coming as an optional add-on in the future), you’ll get stereo outputs on the MIX OUT and headphones.
  • A new power connector for more cable length and case flexibility and removability and one that’s already compatible with the more recent revisions of the Easel power board.
