Citadel by Bastl Instruments
279,00€
Price incl. 22% VAT
Available Soon
Estimated stock date 24-11-2025
Price match guarantee. If you find a cheaper price, we'll match it. Write us
Shop now, pay later in 3 interest-free payments with starting from 76,00€

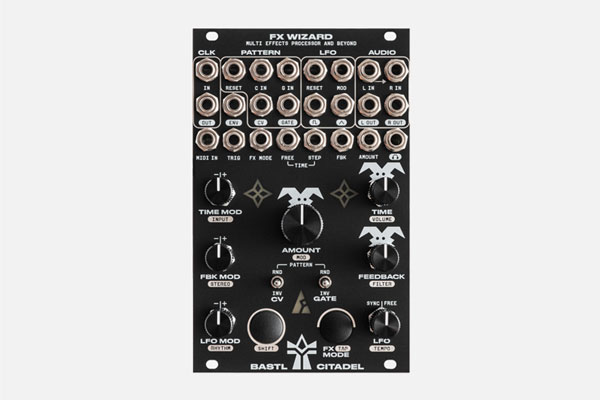

The Citadel is a Eurorack module designed to push the boundaries of sound processing, offering deep exploration through modulation and modular flexibility. The Citadel comes equipped with a reversible front panel with FX WIZARD on one side and WAVE BARD on the other side.
Features
- 9 FX modes: delay (max time in stereo is 1.15s), flanger, freezer, panner, crusher, slicer, pitcher, replayer, shifter
- stereo audio processing at 44kHz/16-bits
- Time parameter with attenuverting modulation (S&H or free)
- Feedback parameter with attenuverting modulation
- AMOUNT mix with attenuverting modulation
- FILTER in the feedback with Lowpass/Highpass
- STEREO detuning for each FX MODE
- FX MODE cv input with attenuation to change modes with CV
- TRIG input to synchronize effects with tempo
- LFO with triangle and pulse output, reset input, attenuverting modulation, synced or free
- Tempo Generator with tap tempo and divider with external clock
- Pattern Generator (tempo synced) with GATE and CV output and patch programmability
- patchable envelope follower
- stereo eurorack-level DC coupled input with input gain (up to +12db), accepts up to -10V to + 10V
- DC coupled stereo eurorack-level output, -5V to +5V
- stereo headphone output capable of driving headphones up to 250 Ohm
- analog sync input
- analog sync output
- TRS MIDI Input (clock, notes, CCs, pitch bend)
- USB-C on the back of the module (firmware updates, USB MIDI in/out)
- Size: 16HP
- Depth: 24mm
- Power: +12 V: <60 mA (w/o headphones), <90 mA (w/headphones to max); -12 V: <20 mA
